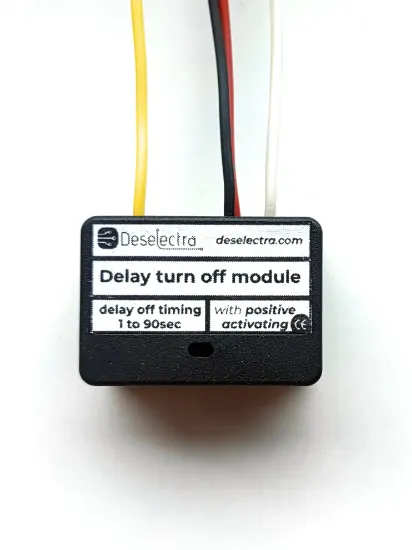

Mini car drl led front lights delay turn off timer switch 1 to 90/720s 12V 20A box

Time relay with accuracy from 1 to 90/ 720 sec seconds.
Manufacturer: Deselectra
Ship to
Shipping Method
Estimated Delivery
No shipping options

Item Description

Time relay with accuracy from 1 to 90/ 720 sec seconds.


Dimensions (plate) - 35mm/18mm/12mm

Dimensions (with box) - 40mm/17mm/21mm


Relay output:  20А/12V DC NO contact - wired

                         10A/12V DC  NC contact - not wired


Wired with 10 cm wires:

Red - positive 12V+

Black - Negative 12V-

Two white - Normally open contact of the relay

Orange - activating 12V+ input - to contact switch


Power:  +  ,  -  Have protection against reverse supply voltage.

Power supply - 12V DC


Time is adjusted by trimmer PR - 100K

Timer don’t have power consumption when it is in standby mode – (open relay)


Principe of work:

When power is on, the relay wait for filing a 12V+ pulse at activating input. When it is received - timer is activated and keep that position, until end of set time.

By filing new pulse - cycle repeat.

Timer can be used for delay off car front lights:

- orange wire is wired to contact switch

- Feeding must be permanent +(red) and -(black)  comes from car battery, trough 1A fuse

- One white wire - to Front light

- Second white wire - to 12V+

- Other wire from front light - to 12V -

When contact switch is on – it will provide 12V+ to the timer and it will close the relay( the lights will cone on). When contact switch is turn off – the timer will start countdown and lights will stay on for the set time ( up to 720s). Then it will go off.

Please note – if power consumption of the lights is more than 20A, must be placed separate powerful relay at the place of bulb at the schematic, to avoid damage of the timer.

 Package contents:

1. Time Relay

2. Instruction for use and wiring diagram.
