DRL mini timer switch time relay 1 to 20 / 150 / 240 / 480 / 1200 sec kit 12V / 20A Delay ON car daylight

CAR DRL Time relay with accuracy from 1 to 20/ 150 / 240 / 480 / 1200 sec seconds.
Manufacturer: Deselectra
*
Old price: $13.00
$11.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Item Description:

Wiring:

  • Red wire - to contact switch 12V+
  • Black wire to - ground - 12V-
  • Two white wires - in parallel wiring

Time relay with accuracy from 0 to 20 / 150 / 240 / 480 / 1200 seconds.

Dimensions:

  • Length - 40 mm
  • Width - 27 mm
  • Height - 21 mm

Power supply: 12V DC - Has protection against reverse supply voltage.

  • 12V+ red wire
  • 12V- black Wire

Output:

  • Normally open contact - NO - 20A/12V - wired with two white wires
  • Normally closed contact - NC -10A/12V - not soldered to front lights switch

Time is adjusted by trimmer.

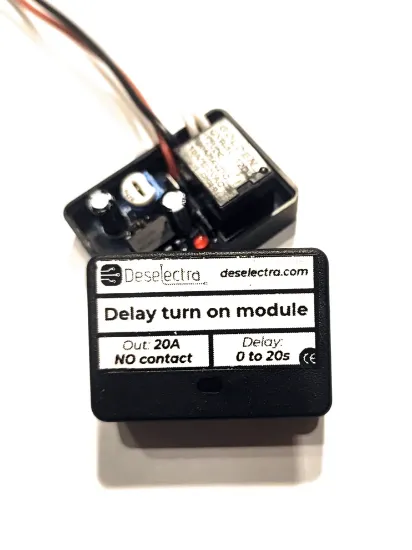

Principle of work: When power is on, the delay time starts, the LED diode lights. When the set time ends, the relay is activated, and output NO contact is closed, NC contact is open until the power is cut off. By restarting power supply - the cycle repeats. The device has a plastic box, as seen in the picture.

It can be used, for example, for the delay on of car lights. When the ignition is started - the timer will wait (1-20/ 150 / 240 / 480 / 1200 secs) and then will start the front lights to save the car battery. When the ignition is off - the lights will cut off immediately. The timer needs to receive 12V from the contact key, and the output should be wired to the front lights switch.

Package contents:

  1. Mini Timer
  2. Instruction to use and wiring diagram
