Upgrade Your Automation with Our Adjustable Delay Timer Relay! ⏰
Simplify and enhance your automation projects with our versatile Delay Timer Relay. Perfect for various applications, this relay allows you to customize delay start times with ease and precision.
🛠️ Customizable Delay Range: Set delay times from 25 seconds to 31 hours and 17 minutes using the provided range table. Adjust the time with a trimmer for precise control.

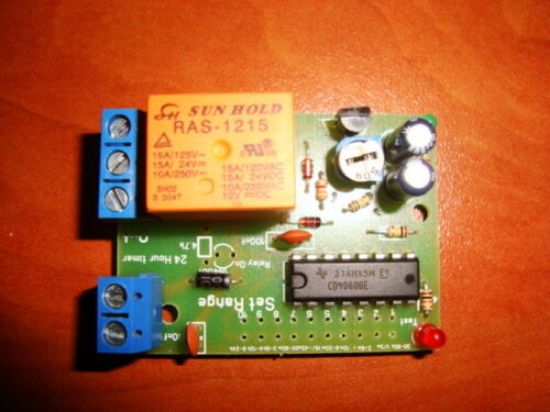

📏 Compact Dimensions:
- Length: 50 mm
- Width: 37 mm
- Height: 20 mm
🔌 Versatile Terminals:
- 12V Input (Protected against reverse supply voltage)
- Normally Open (NO) Contact
- Normally Closed (NC) Contact
- Common Terminal
⚡ Robust Power Supply: Operates on 12V DC with a relay rated at:
- 10A 250V AC
- 15A 125V DC
- 15A 24V DC
💡 LED Indicators:
- Green LED: Flashes to indicate delay progress.
- Red LED: Lights up when the relay is activated.
🔧 Easy to Adjust: The delay range can be set by making a track between terminals at the bottom of the plate, numbered 1 to 10, according to the setup table. Fine-tune the delay time using the trimmer.
📝 Example Setup: For a 9-hour delay, choose range number 9 (32,400 seconds). Divide this by 512 (approx. 63 seconds). Adjust the trimmer so the red LED lights up 63 seconds after power is applied, activating the relay after about 9 hours.
📦 Package Contents:
- Time Relay
- Instruction Manual and Wiring Diagram
Method of Operation:
- Power on the device to start the delay time.
- The green LED flashes, indicating delay progress.
- When the set time ends, the relay activates, the green LED lights up, and the NO contact closes while the NC contact opens.
- Restart the power supply to repeat the cycle.
🔒 Note: The device does not include a plastic box, as shown in the picture.
Upgrade your automation projects with precise timing and reliable performance. Order now and streamline your operations with our Adjustable Delay Timer Relay! 🕒🔧💡
