Upgrade your control system with this compact delay-off timer relay module, designed for precise timing control from 0 to 40 seconds. It is suitable for automotive and general 12V DC applications where reliable delayed switching is required.
Key Features

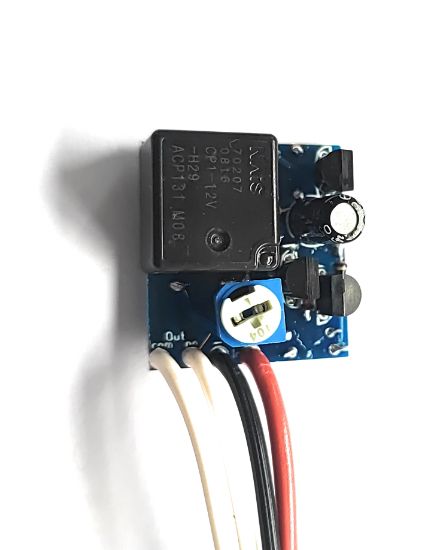

Compact Design:
Dimensions of 24 mm × 23 mm × 13 mm allow easy integration into tight spaces and vehicle installations.
Easy Installation:
Pre-wired with 10 cm cables for simple connection:
- Black wire: negative (12V–)
- Red wire: positive (12V+)
- Two white wires: relay output contacts
Reliable Power Supply:
Operates on 12V DC with built-in reverse polarity protection for safe and stable performance.
Adjustable Timing:
Delay time is adjustable from 0 to 40 seconds using a built-in trimmer for precise control.
Simple Working Principle:
When power is applied, the relay activates and maintains its state for the set delay time. After the time expires, the relay switches off automatically, enabling delayed shut-off control.
Ready to Use:
The module is fully assembled, tested, and ready for installation with included instructions.
Package Contents
- Mini Timer Relay Module
- Instruction Manual with Wiring Diagram
