Convert Constant Signal Generator to 0-10s Cyclic Adjustable Pulse, 12V Car Auto Pulse generator

Item Description

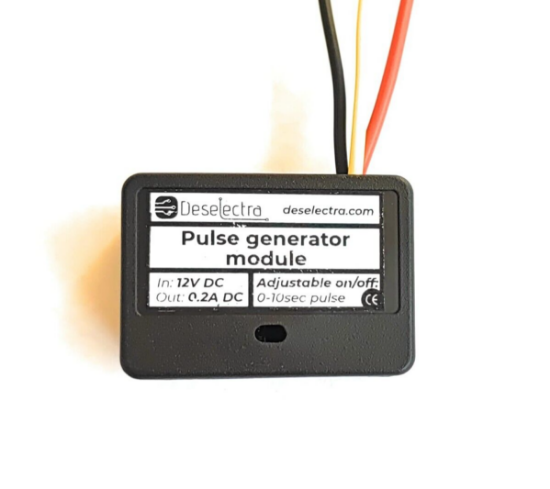

This module is designed to convert a constant 12V DC voltage into a repeating 12V pulse signal with adjustable duration and pause intervals.

Specifications:

• Input Signal: 12V DC (Red wire)
• Output Signal: 12V pulse with adjustable duration (0 to 10 seconds) and adjustable pause (0 to 10 seconds) – Yellow wire
• Ground: Black wire
• Dimensions: 21mm x 17mm x 16mm

Operation Instructions:

1. Connect the red wire to the positive 12V DC input signal.
2. Connect the black wire to the ground.
3. The yellow wire will output a repeating pulse signal with adjustable timing.

The module will generate continuous pulses and pauses, regardless of the ongoing input signal. If the input signal is interrupted and restarted, the module will reset and start the cycle again.

Time Adjustment:

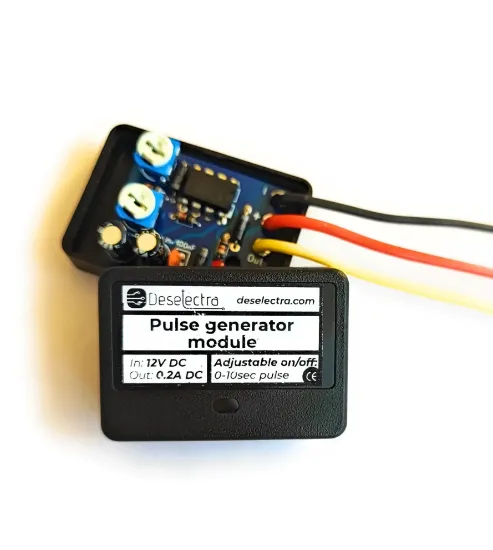

The pulse duration and pause interval are adjusted using the built-in trimmer knob:

• Rotate clockwise to increase the time.
• Rotate counterclockwise to decrease the time.

Package Contents:

• 1 x Signal Converter Module
