2-Pack Sequential Turn Signal Modules – 5-Step Flash, Universal Fit

Item Description

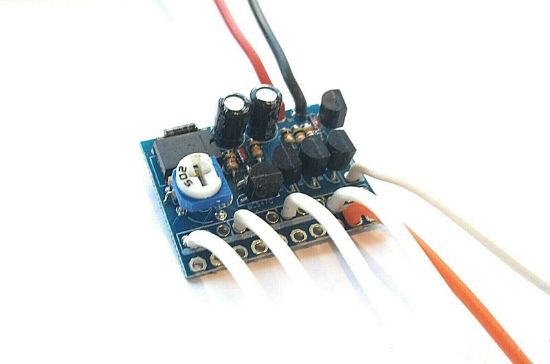

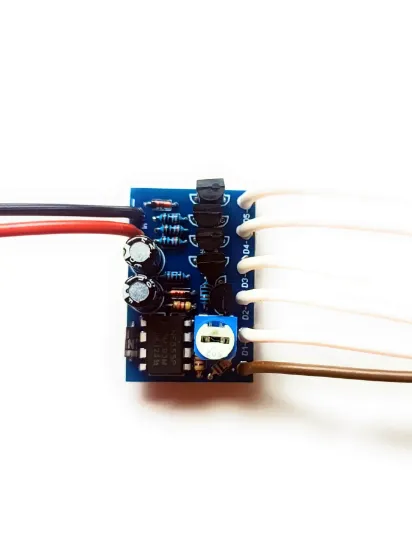

2-Piece Sequential LED Turn Signal Module

Upgrade your vehicle’s turn signal system with this sequential LED module. Each module controls 5 LEDs, lighting them in sequence before resetting and starting the cycle again, providing a modern and dynamic look for your car, motorcycle, or motorbike.

Features:

• Power Supply: 12V DC with protection against reverse voltage (Black and Red wires).
• LED Outputs: 5 outputs, each capable of handling up to 0.5W (0.1A per output).
• Sequential Operation: Each LED lights up one after the other, and once all LEDs are illuminated, they turn off and the cycle restarts.
• Trimmer Adjustment: Customize the delay timing for when all LEDs are illuminated simultaneously.
• Direct Wiring:
  • Orange wire: Common positive.
  • 5 White wires: Negative outputs for individual LEDs.
  • If using 1.8V LEDs, a 330-ohm resistor must be soldered as per the wiring diagram.
• Flexible Applications: Supports LED strips or individual diodes (e.g., 5 x 2 LEDs).

Applications:
Ideal for use as left or right turn signals on cars, motorcycles, or other vehicles. Two identical modules are required for a complete setup.

How It Works:
When powered on, the module lights up each LED in sequence. After all LEDs are lit, they turn off and the cycle begins again.

Package Contents:

1. 2x Sequential LED Turn Signal Modules.
2. User Instructions and Wiring Diagram.

For a demonstration of how the module works, visit: YouTube Video
