π Length: 38 mm
π Width: 24 mm
π Height: 19 mm
Power Supply:
π Voltage Range: 10 to 14 V DC
π΄ Red Wire: 12V+
β« Black Wire: 12V-
Output:
β‘ Direct 12V 20A
βͺ White Wire: 12V+
π΅ Blue Wire: 12V-
Key Features:
β±οΈ Adjustable Timing: Easily set the delay time from 1 to 10 / 150 / 480 / 1200 seconds using a trimmer and a small screwdriver. Rotate clockwise to increase the time.
π‘ LED Indication: The LED lights up when the relay is activated, providing clear visual feedback.
π Safety Fuse: For added safety, you can install a 20A fuse on the red wire.
π Direct Voltage Output: The output provides direct 12V, allowing you to wire the load directly.
Important Notes:
β οΈ The timer will not function if the power supply is below 10V.
β Setting the timer to the minimal time may cause the relay to click upon power-up (not recommended).
πͺ If your load exceeds 20A, use a separate, more powerful relay after the timer.
Operating Principle:
- Power On: The delay time starts when power is supplied. The LED lights up, and the output (white and blue wires) receives 12V.
- Delay Period: The relay remains activated during the set time.
- End of Cycle: Once the set time elapses, the relay deactivates, and the output stops receiving 12V, even if power is still on.
- Cycle Restart: Restarting the power supply will repeat the cycle.

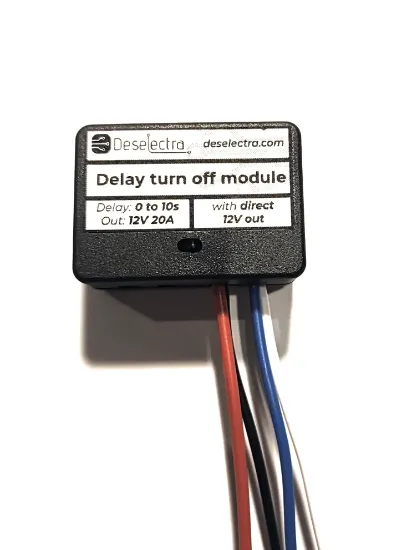

This timer is housed in a durable plastic box, ensuring longevity and protection.
Package Contents:
π¦ Timer
π Instruction Manual and Wiring Diagram 1 to 10sec
π Instruction Manual and Wiring Diagram 1 to 150sec
π Instruction Manual and Wiring Diagram 1 to 480sec
π Instruction Manual and Wiring Diagram 1 to 1200sec
Upgrade your setup with our reliable and easy-to-use Adjustable Delay Timer today! πͺπ§
